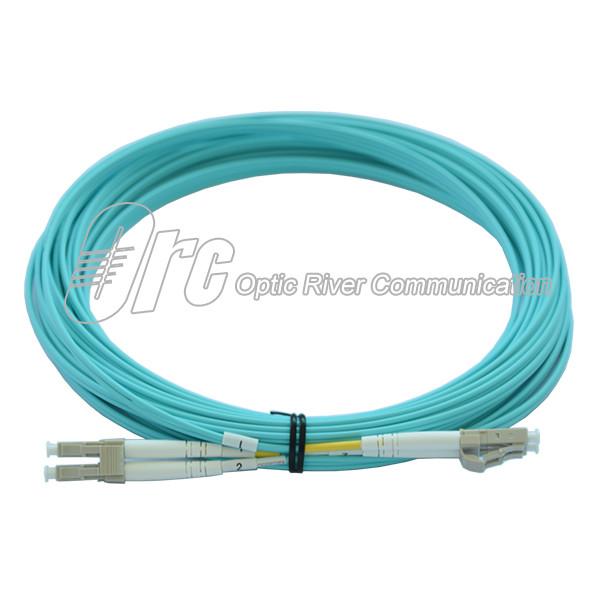

Duplex 2.0mm OM3 LC UPC Fiber Optic Patch Cord Aqua Color Jacket
Description
The 10G OM3 50/125um Multi-mode fiber patch cable meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling.
ORC supplies various kinds of Single Mode and Multimode Fiber Optic Loopback Cables, which are with different connectors including ST, SC, FC, LC, MU, MTRJ etc. Each cable is functionally tested before shipping and is covered by a lifetime warranty.
How to choose correctly the cable jacket: PVC, LSZH or OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks, campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
The features of PVC, LSZH and OFNP Jacket are as follows:
◆ PVC cable resistant to oxidation and degradation, it is commonly used for horizontal runs from the wiring center.
◆ LSZH cable has a special flam-retardant coating, it is between floors in a building.
◆ OFNP cable is space within the building created by building components, design for the movement of air. It is usually work for vertical runs beween floors.
Product information
| Connector type | LC-LC | Polish type | UPC |
| Fiber number | 2 | Fiber mode | OM3 |
| Wavelength | 850nm | Connector material | Plastic housing and boot |
| Insertion loss | <=0.3dB | Max transmission distance | 600M |
| Fiber grade | Bend insensitive | Data rate | 1GB @ 850nm |
| Cable jacket | LSZH | Cable diameter | 2.0mm zipcord |
| Polarity | A(Tx)-B(Rx) | Operating temperature | -20-+60℃ |
Features
◆ Standard: Telcordia GR-326-CORE
◆ Compact design
◆ High temperature stability
◆ IEC,JIS,TELCORDIA-326 compliance
◆ Low insertion loss and back reflection loss
◆ 100% inspected for optical characteristics before shipment
Applications
◆ Premise installations
◆ Telecommunication networks
◆ Data processing networks
◆ Active device termination
◆ CATV / Metro
Drawing and cable length tolerance
| Length Tolerance |
| L<1M | ±0.08M |
| 1M≤L<20M | ±0.10M |
| L≥20M | ±1%M |
