Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch

Brand Name : OEM

Model Number : LC/UPC-LC/UPC-2F-3.0-20M

Certification : ISO9001

Place of Origin : CHINA

MOQ : Support sample order

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000,000 connectors/month

Delivery Time : 3-7 work days

Packaging Details : Individual packaging with Ziplock Bag

Fiber Type : OM2

Jacket Material : LSZH

Fiber Count : Duplex

Polishing : UPC

Jacket Color : Orange

Connector Style : SC-SC

Warranty : 1 year

Fiber Glass Brand : YOFC or Corning

Connector Housing Color : Beige

Connector Boot Color : White

Contact Now

MAIN CABLE 3.0MM DUPLEX FIBER OPTIC JUMPER LC - LC OM2 50/125 LSZH WITH 2.0MM BRANCH

Description

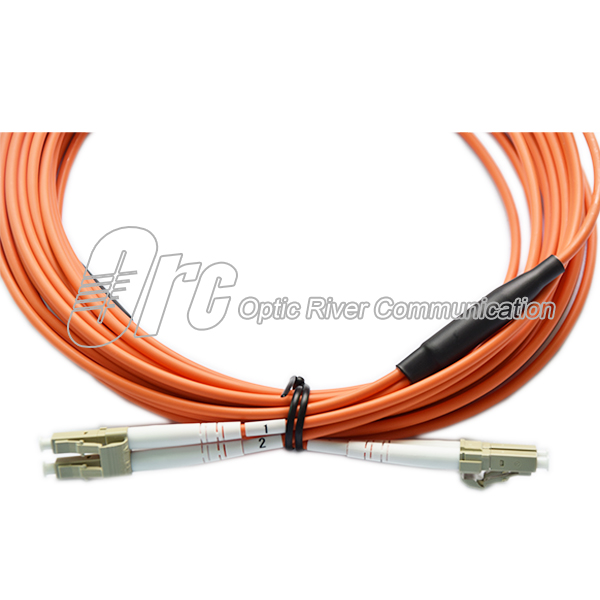

The trunk cable of the patch cord is duplex 3.0mm OM2 fiber optical cable and fans out 2 pcs of 2.0mm branches terminated with LC duplex connectors. Compared with zipcord duplex fiber optic cable, 3.0mm round duplex will save more space and be easier to manage in the long distance link. The default color of the OM2 FO cable is orange, and at the same time we can customize it with different color but without any cost increasing.

Main Cable 3.0mm Duplex Fiber Optic Jumper LC - LC Om2 50/125 LSZH With 2.0mm Branch

Product parameter

Connector type	LC-LC	Polish type	UPC
Fiber number	Duplex	Fiber mode	OM2 50/125μm
Wavelength	850nm/1300nm	1G Ethernet distance	550m at 850nm
Insertion loss	<=0.3dB	Return loss	>=25dB
Fiber grade	Bend insensitive	Minimum bend radius	7.5mm
Breakout diameter	2.0mm	Trunk diameter	3.0mm
Polarity	A(Tx)-B(Rx)	Operating temperature	-20-+60℃

Main features

◆ Endface inspection, IL/RL testing and 3D interferometer testing

◆ IEC 61754, TIA 604 (FOCIS), YD/T

◆ High concentricity 2.5mm ceramic ferrule for SC, FC, ST; 1.25mm ceramic ferrule for LC and MU

◆ YOFC bend insensitive fiber optic glass

Quality certifications

FAQ

Q: How about the freight?

A: We can deliver the goods by your own express accounts such as DHL, UPS and Fedex if small quantity. At the same, we have long-term cooperated shipping agent who can offer a cost-effective transportation case for you.

Q: Could I have a free sample for testing?

A: Yes, most of the time we offer free samples for our customers, but you should bare the international freight by yourself.

Q: What's your main products?

A: 1, Standard patch cord/pigtails for FTTx---SC/LC/FC/ST/MU/MTRJ/E2000 connectors with OM1/2/3/4/5&OS1/2 cable

2, MPO/MTP® trunk cable

3, MPO/MTP® fanout/breakout/harness cable

4, Pre-terminated multi fiber cables

5, Patch panel, MPO cassette and rack(Metal plate products support OEM also. We can produce according to your design)

6, 40G/100G fiber optic transceiver package series like AWG, MT, Free Space Isolator

7, Indoor/Outdoor Cables

8, Fiber Optical Splitters

Q: How long is your warranty period?

A: The average warranty period is 12 months.
