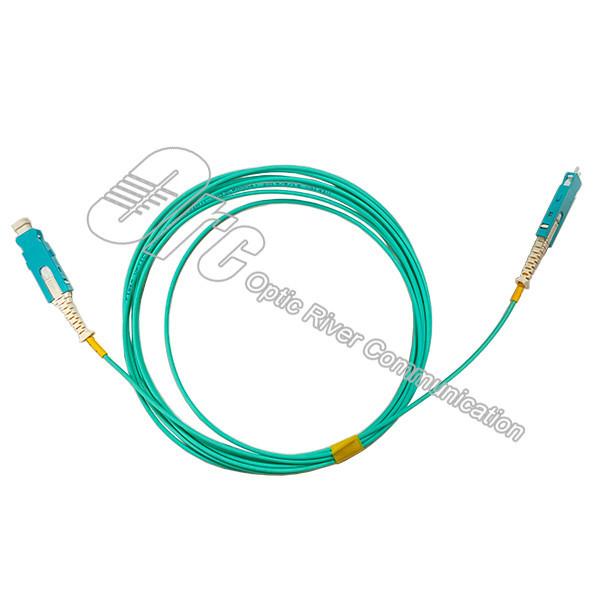

Duplex Connector SN - SN Multi Mode Fiber Optic Patch Cord Aqua Sheath For 400G Transceiver

Brand Name : OEM

Model Number : SN/UPC-SN/UPC-2F-OM3-2.0-L-3M

Certification : ISO9001

Place of Origin : CHINA

MOQ : Support sample order

Price : Negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000,000 connectors/month

Delivery Time : 3-7 work days

Packaging Details : Individual packaging with Ziplock Bag

Duplex Patchcord Fiber Type : OM3 10G-300

OM3 Jumper Sheath Material : LSZH

Fiber Count : 2 Fibers

SN Connector Polishing : UPC

Jacket Color : Aqua

Connector Style : SN/UPC

Warranty : 1 year

SN Connector Boot color : White boot

Contact Now

Duplex Connector SN - SN Multi Mode Fiber Optic Patch Cord Aqua Sheath For 400G Transceiver

SN Connector NEW Duplex connector optimized for 400G new generation Data Center

The SN® connector was designed to provide individual and independent duplex fiber breakout at a quad style transceiver (QSFP, QSFP-DD, OSFP) as a more efficient, increased reliability, and a lower cost alternative than the MPO connector.

The SN® connector can be used for fiber applications such as PSM4, SR4, DR4, DR4+ and SR4.2 modules at the transceiver where MPO is commonly used now.

SN® is a push-pull style connector which allows for high density layout. Even though SN® allows up to 4 times higher density compared to duplex LC connector, the required quality, optical, and mechanical performance can be maintained.

Features of SN Duplex fiber optic patch cord

◆ Designed for OSFP/QSFP-DD Break out application

◆ IEC random mating Grade B

◆ Proven 1.25 mm Ferrule technology
◆ 4 Duplex connectors (total 8-fibers) in OSFP/QSFP-DD footprint

◆ Effective size reduction compared to LC Duplex

SN to SN Fiber Optical Patchcord Applications

◆ 4 x SN in 1 transceiver

◆ QSFP-DD 400G DR4

◆ SN fiber optical patch panel

SN® fiber optical connector has some advantages compared to MPO

• Easy break out/simple network structure
• Easy cleaning/maintenance of the ferrule end face
• Proven stable optical performance

Drawing for SN fiber optical connector

Duplex Connector SN - SN Multi Mode Fiber Optic Patch Cord Aqua Sheath For 400G Transceiver

Duplex Connector SN - SN Multi Mode Fiber Optic Patch Cord Aqua Sheath For 400G Transceiver

Duplex Connector SN - SN Multi Mode Fiber Optic Patch Cord Aqua Sheath For 400G Transceiver
