Brand Name : OEM
Model Number : ORCA0013
Certification : ISO9001
Place of Origin : CHINA
MOQ : Support sample order
Price : Negotiation
Payment Terms : T/T, Western Union, L/C
Delivery Time : 3-7 work days
Packaging Details : 1KM / 2KM or other contracted length per roll
Fiber Type : G652/G657/G655
Cable Material : LSZH
Fiber Count : 2 Fiber
Operation Temperature : -20℃-+60℃
Fiber Count | Cable Dimension(mm) | Cable Weight(kg/km) | Tensile(N) | Crush(N/100mm) | Min. Bend Radius(mm) | Range of Temperature(℃) | |||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
2 | 1.6*3.3 | 4.4 | 60 | 120 | 200 | 1000 | 50 | 30 | -20-+60 |
2 | 1.8*3.7 | 6.0 | 60 | 120 | 200 | 1000 | 50 | 30 | |
2 | 2.0*4.1 | 7.2 | 90 | 150 | 200 | 1000 | 50 | 30 | |
2 | 2.4*4.9 | 10.0 | 90 | 150 | 200 | 1000 | 50 | 30 | |
2 | 2.8*5.7 | 13.0 | 120 | 225 | 200 | 1000 | 50 | 30 | |
2 | 3.0*6.1 | 14.8 | 120 | 225 | 200 | 1000 | 50 | 30 | |
Note: 1. All the values in the table, which are for reference only, are subject to change without notice. 2. D is outer diameter of the round cable. 3. The minimum bend radius(static) is 5D when G.657 fiber is used. |
Product Advantages
![]() |

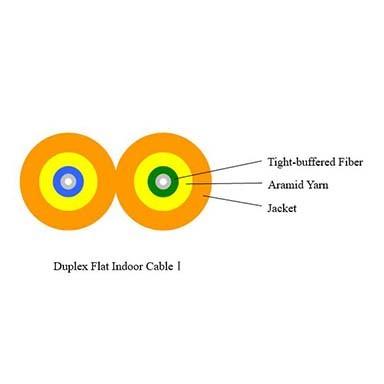

Duplex Flat Indoor Fiber Optic Cable Single Mode LSZH G652 G657 G655 Type Images |
